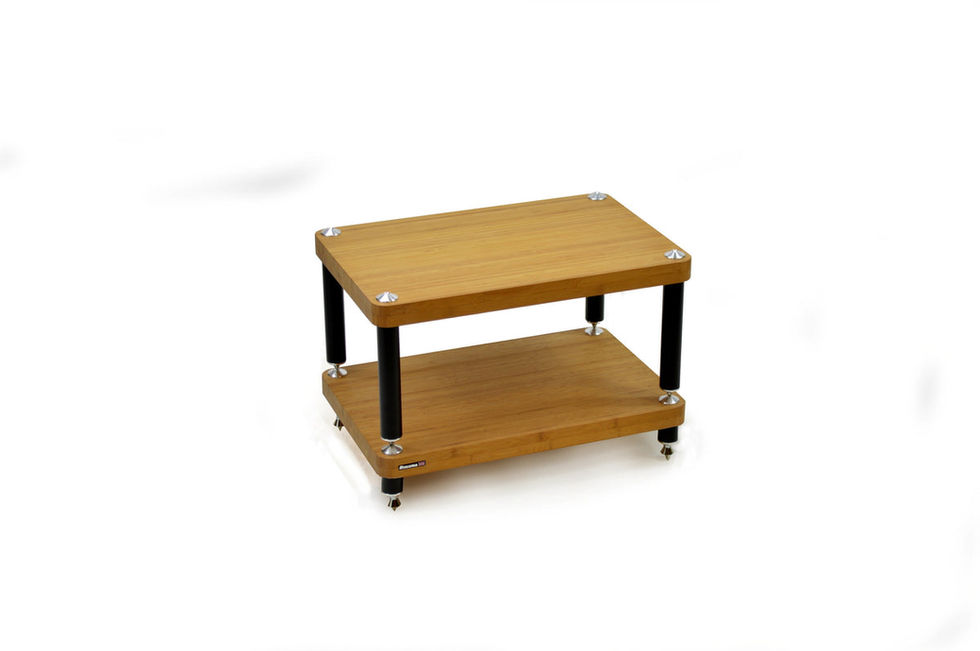

Evoque Eco 60-40 Special Edition Natural Bamboo

Based on the "2014 best equipment support" award winning standard Evoque Eco 60-40, the Special Edition incorporates significant sonic and mechanical resonance control upgrades designed specifically for the hifi enthusiast who is looking for the ultimate in musical performance. This visually attractive and beautifully crafted British made modular support makes a stunning centrepiece and is perfect for both supporting and maximising the performance of quality hifi equipment.





1.Bamboo shelving.

Atacamas high density carbonized bamboo gives significant major sonic advantages when compared to traditional hardwood and veneered supports, with its unique micro growth pore structure offering both excellent vibration absorbing and resonance controlling properties. The production processes, layering, density and overall thickness have been specifically chosen to give the best possible acoustic results.



2. A.S.I.S.T dampening gaskets.

Atacama Sonic Isolation System Technology (A.S.I.S.T) has been incorporated into each module. This consists of two dampening gaskets* in each leg designed to reduce ringing and to isolate the Aluminium components from the outer leg collar.



3. Aluminium Top and Lower caps incorporating Leg Internal Suds.

These components act as resonance conductors, allowing an escape route for this energy away from the bamboo shelves so that it can be dissipated through to the floor.



4. NEW- Mechanically Tuned Leg Lengths*

Leg lengths are 15mm longer than standard Evoque, thus lowering the resonance frequency of each module* when compared to an equivalent standard Evoque.



5. NEW- Leg Tuning Counterweights*.

By adding additional fully adjustable mass via Nickel plated Bronze frostrum cones to the leg internal studs*, the module frequency can be tuned to dial out the resonance of the specific equipment being supported.



6. NEW-V.R.D.C Vectored Resonance Deflection Channels.

Each Bamboo panel has V.R.D.C Vectored Resonance Deflection Channels. V.R.D.C. is the three dimensional geometric design that has been crafted into the underside of each module. This complex pattern neutralises high frequency harmonic energy by directing it away from the supported equipment toward the leg grounding components. Each channel has been cut into a "V" shape so directing energy that is entering the shelf vertically into a horizontal axis so avoiding resonance feedback, maximising each modules performance.



7. NEW. Bronze Isolation Coned Spikes.*

With so much resonance being directed away from the bamboo, the spike interface has now been opened so avoiding a constriction of this energy and allowing it to freely dissipate to the floor.

*Due to the base modules requirement to release energy rather than control it, not all upgrades are incorporated fully into this module.





IMPORTANT- PLEASE READ: -

Bamboo is a unique material so will not match other woods. The colours shown in the photography are a representation taken in a very well-lit photo studio under artificial light. Do not attempt to use these images to match with other woods and furnishings as batch colour, shading, room lighting, natural variation, and wood grain will be different. Even the differences between viewing screen types will make colour matching impossible.



As a (very!) rough guide, under normal home lighting conditions, typically Natural finish generally has a buttery like appearance, with the Dark Finish having a Dark chocolate look. THERE WILL BE VERIATIONS EVEN WITHIN THIS DISCRIPTION.



Any number of modules can be used providing the maximum overall height of the support does not exceed 1255mm (50").



30kg per level loads can be exceeded by an additional 15kg on the base module providing the extra weight used is deducted from the overall capacity of the modules placed upon it.
